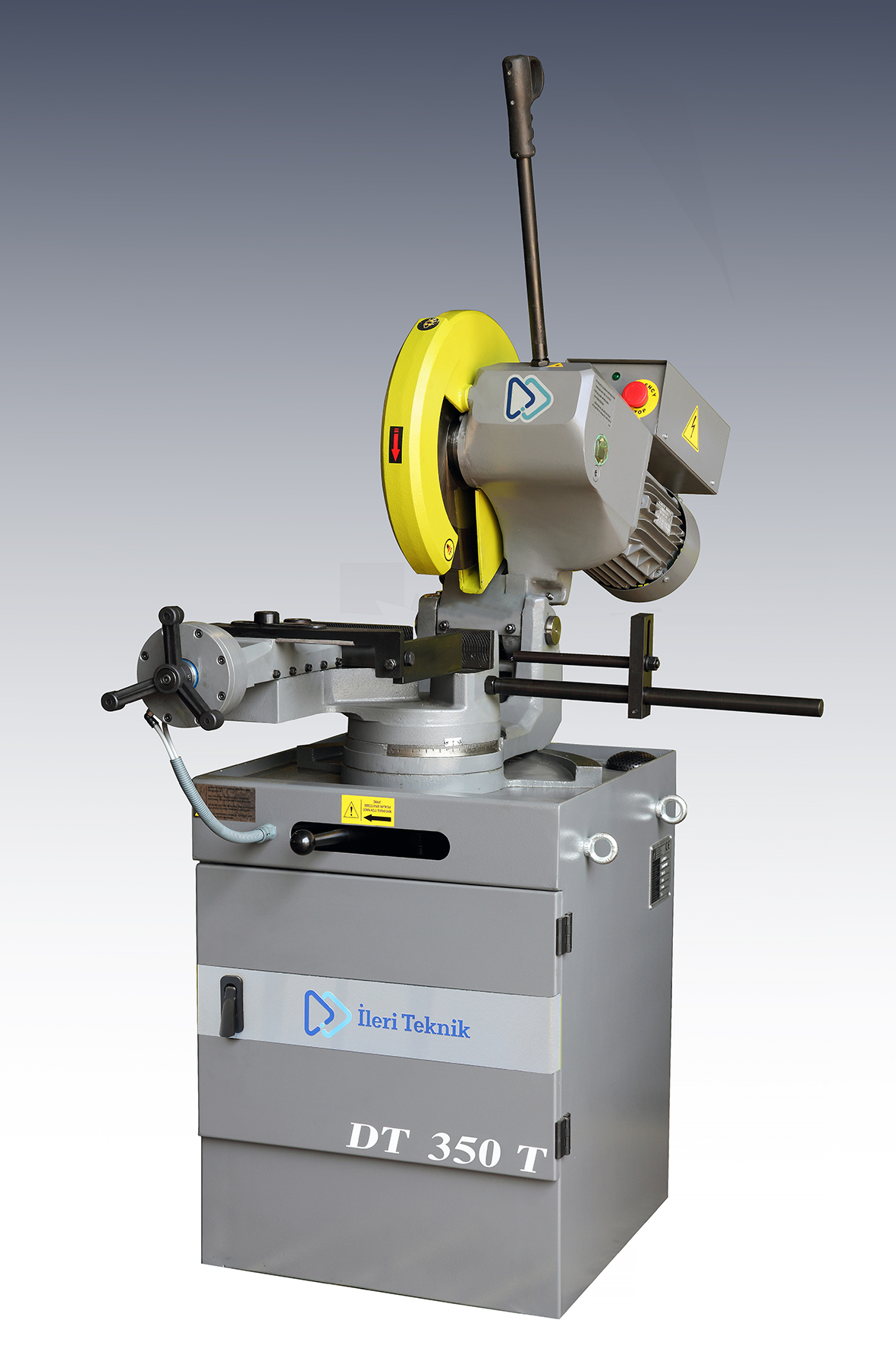

DT 350T Manual With Power Vice Circular Saw Machine
DT 350T Manual With Power Vice Circular Saw Machine
Product Overview
Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom
Product Features
-

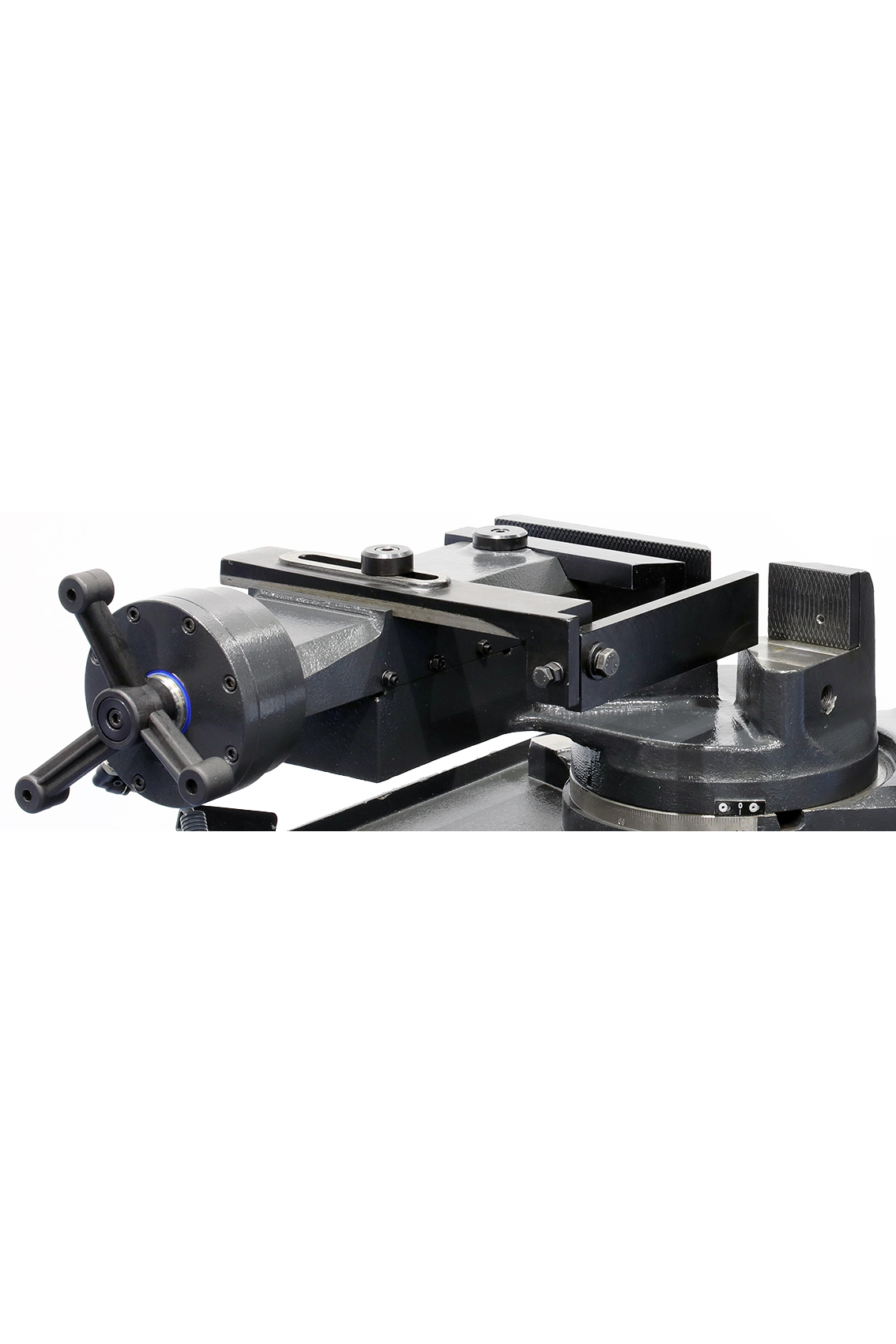

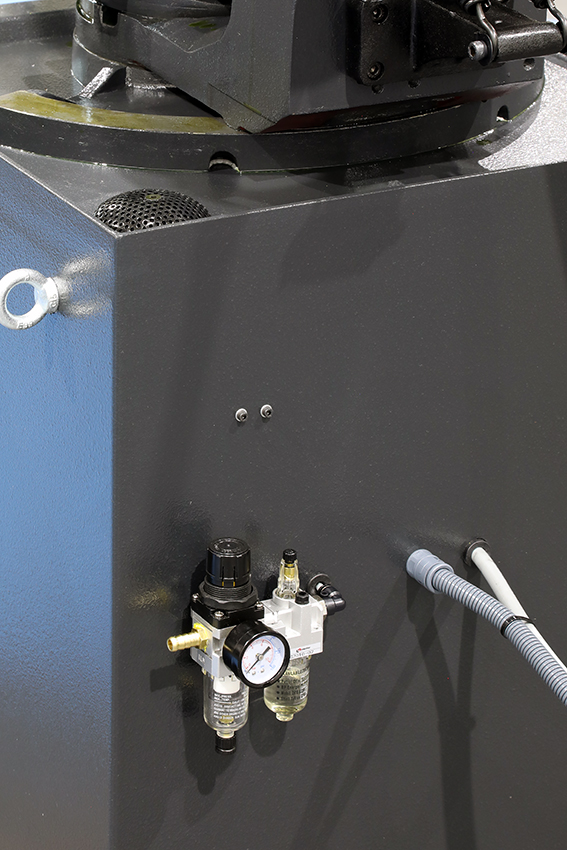

Air-operated clamp for material vice
-
Low voltage switch within the pull-down handle grip
-

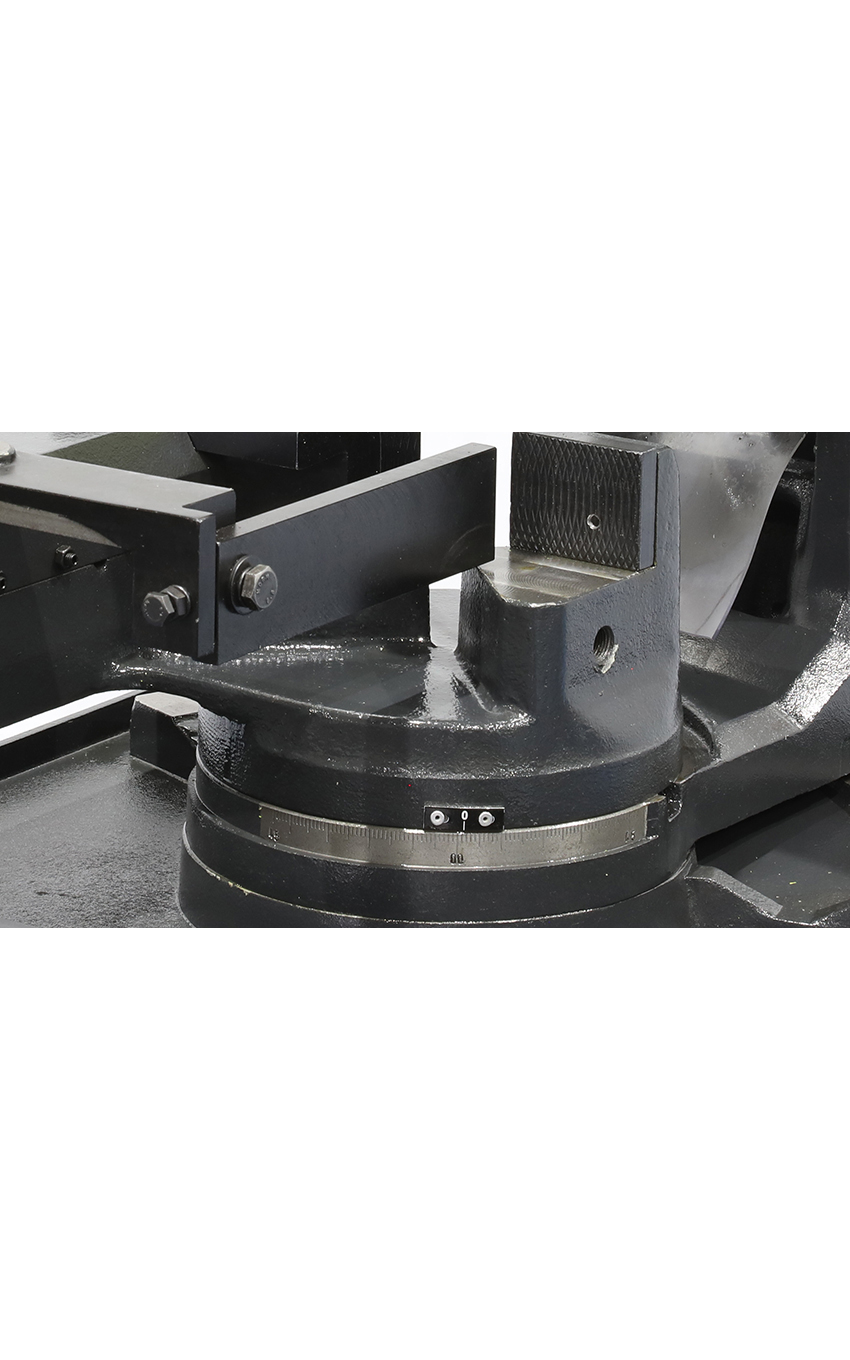

Easy, positive ±45° mitre
-
Nickel bronze gear with precision ground & hardened worm drive screw
-
Robust, double hinged pivot
-

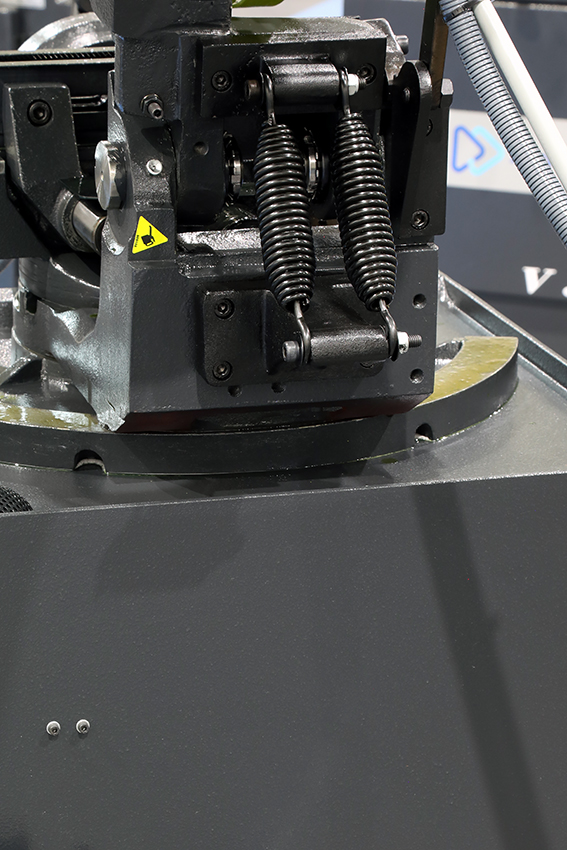

Double counterbalance springs
-
2 speed main motor
-

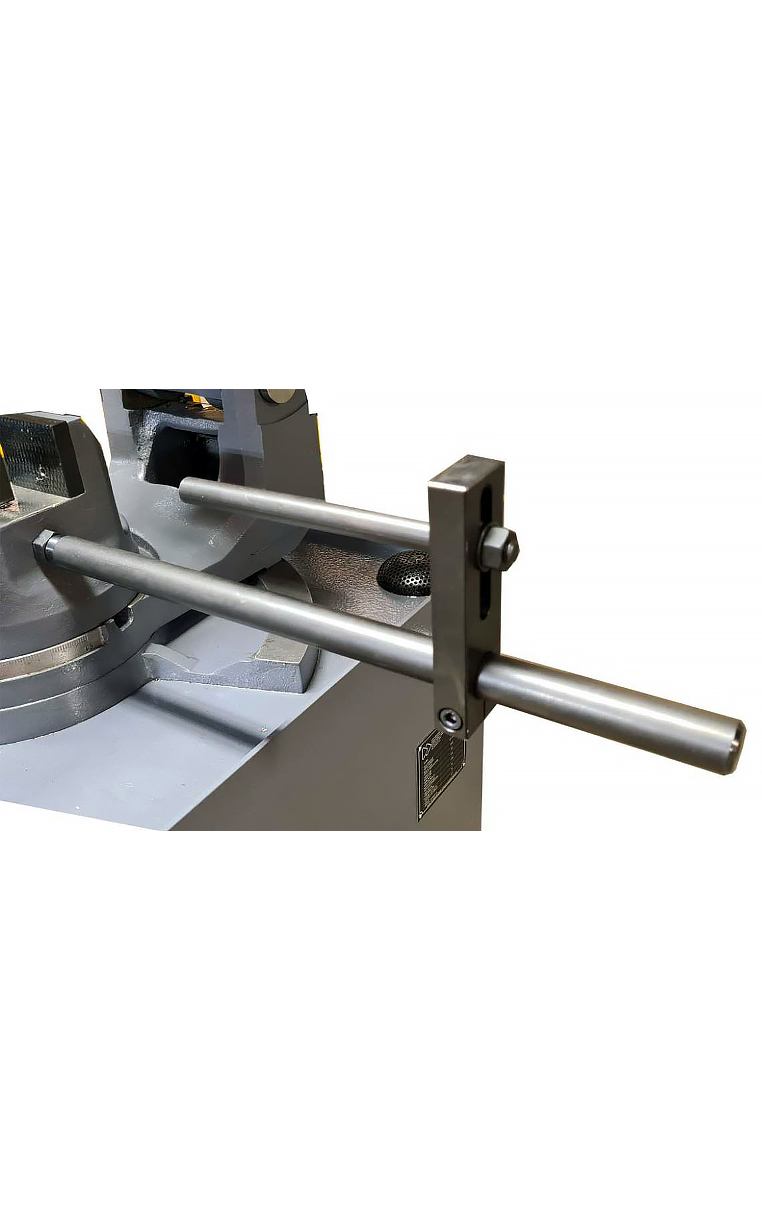

Adjustable bar stop 400mm
-
Large, square, integral base for stability
-
Internal electric coolant pump
-

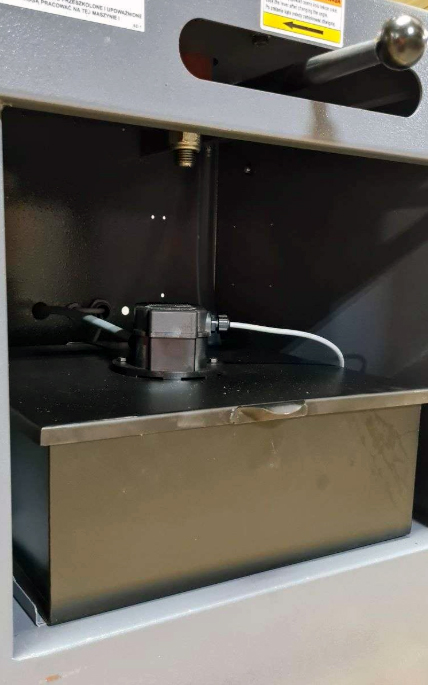

Coolant tank with integral chip tray
Product Specification
Cutting Capacity
| Maximum Saw Diameter | 350 mm |
| Saw Angle | 90° +/- 45° |
| Round Material Diameter (max.) | 115 mm 110 mm |
| Square Material (max.) | 100 x 100 mm 90 x 90 mm |
| Rectangular Material (Max.) | 120 x 80 mm 90 x 90 mm |
Technicial Specifications
| Main Voltage | 400 V |
| Control Voltage | 24 V |
| Installed Power | 4,7 kW |
| Current | 1, 85 A |
| Saw Engine | 1,3 - 1,8 kW |
| Boron Oil Pump | 0,06 kW |
| Saw Speed | 45 / 80 RPM |
| Angle Rotation | ±45° |
Saw Features
| Saw Diameter | 350 mm |
| Saw Bore Diameter | 32 mm |
| Pin Holes | 2 x Dia. 11 |
| TiN Coating | Medium Hard Steel |
| TiCn Coating | High Stiffness Steel |
| TiAIN Coating | Stainless steel |
Dimensions
| Width | 600 mm |
| Length | 1000 mm |
| Height | 1400 mm |
| Net weight | 220 Kg |
| Gross weight | 240 Kg |
Product Attachements
| Attachment | Size |
|---|---|
| DT 350T.pdf | 16.38 MB |
