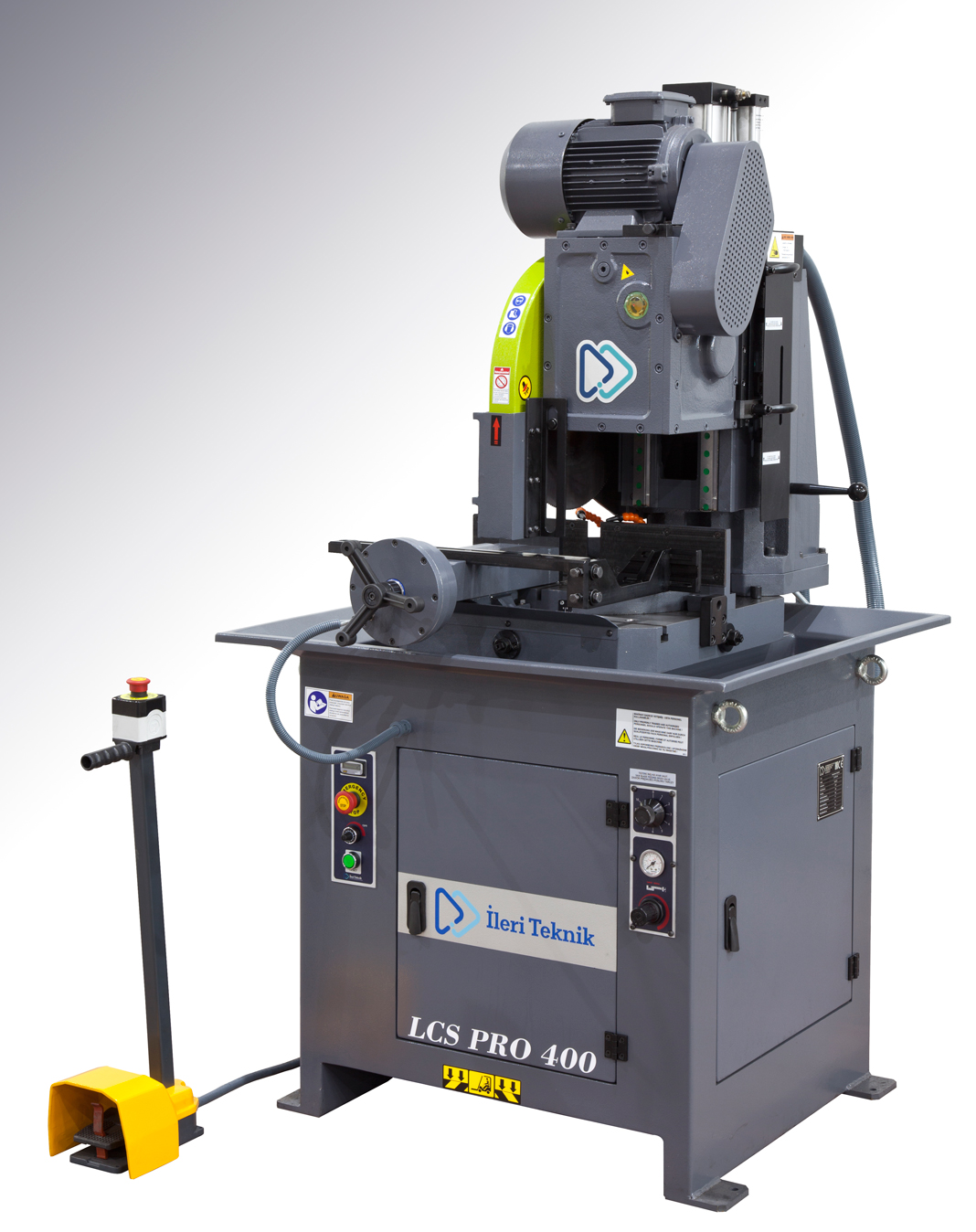

LCS Pro 400 Semi-automatic Circular Saw Machine
LCS Pro 400 Semi-automatic Circular Saw Machine
Product Overview
Semi-Automatic Vertical Action Circular Saw
Product Features
-
Foot switch actuation
-

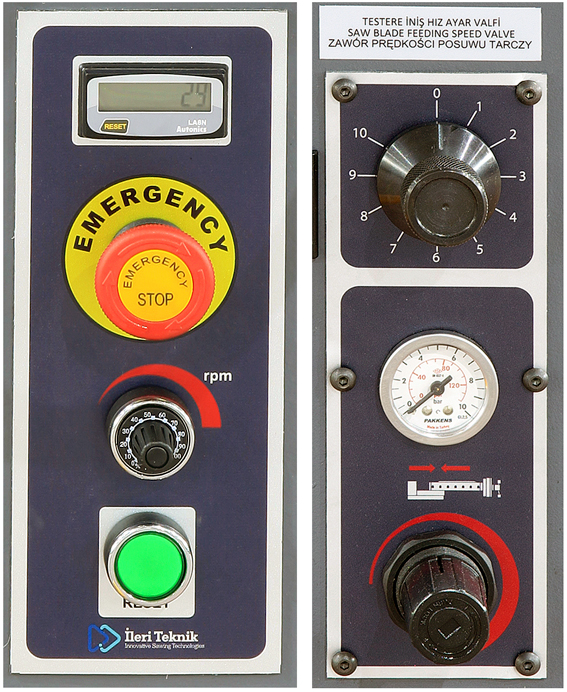

Variable blade speed with inverter (20-80 rpm)
-
High performance heavy duty gear box designed with fully hardened and grinded helical gears,
-

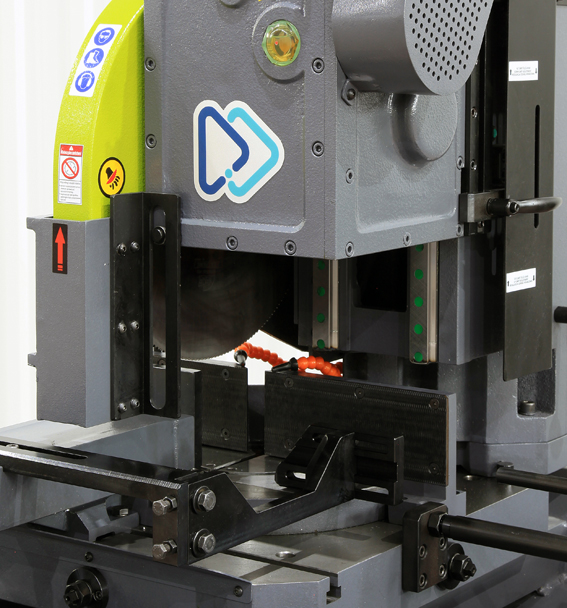

Head descends on hardened roller type linear guides
-

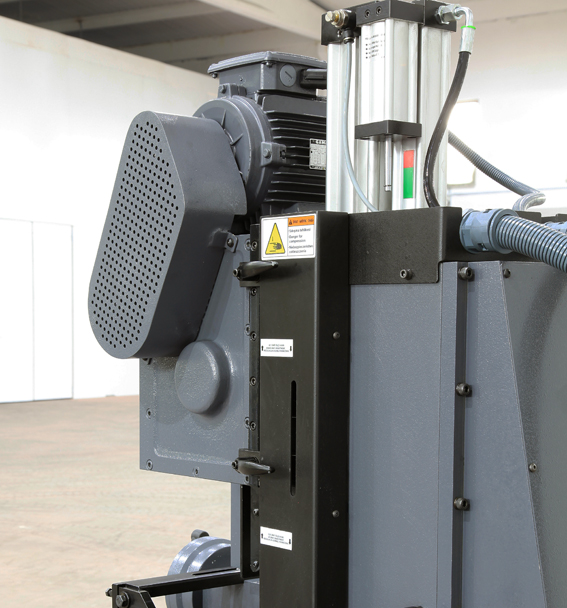

Hydro-pneumatic operation of saw head smoothes descent for optimum cut
-
Easy, positive 0-45° right and 60° deg mitre left
-
Coolant tank with box to collect chips and electric pump for blade lubrication and cooling
Product Specification
Cutting Capacity
| Maximum Saw Diameter | 400 mm |
| Saw Angle | 90° +/- 45° + 60° |
| Round Material Diameter (max.) | 120 mm 120 mm 110 mm |
| Square Material (max.) | 120 x 120 mm 110 x 110 mm 90 x 90 mm |
| Rectangular Material (Max.) | 160 x 90 mm 140 x 90 mm 90 x 90 mm |
Technicial Specifications
| Main Voltage | 400 V |
| Control Voltage | 24 V |
| Installed Power | 3,1 kW |
| Current | 7 A |
| Saw Engine | 3 kW |
| Boron Oil Pump | 0,06 kW |
| Air pressure | 6 kg/cm2 (240 l/min) |
| Saw Speed | 20 - 80 By Inverter |
| Angle Rotation | 90° / +/- 45° / + 60° |
Saw Features
| Saw Diameter | 400 mm |
| Saw Bore Diameter | 40 / 50 mm |
| Pin Holes | 4 - 15 -80 |
| TiN Coating | Medium Hard Steel |
| TiCn Coating | High Stiffness Steel |
| TiAIN Coating | Stainless steel |
Dimensions
| Most | 1100 mm |
| Size | 1000 mm |
| Height | 1700 mm |
| Net weight | 540 Kg |
| Gross weight | 560 Kg |
Product Attachements
| Attachment | Size |
|---|---|
| LCS PRO 400.pdf | 20.38 MB |
