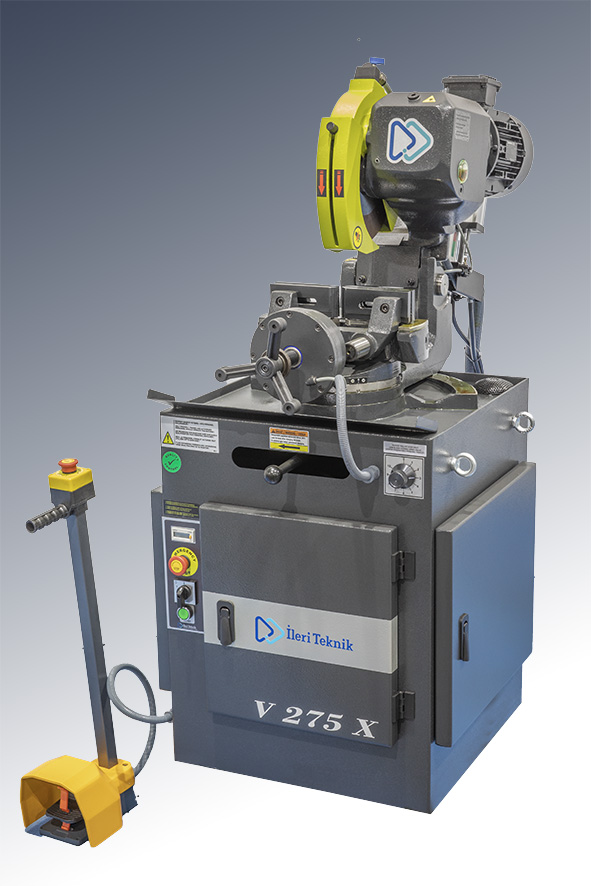

V 275X Semi Automatic Circular Saw Machine

Overview
Specifications
Attachements
Request Price

Product Overview

Semi-automatic saws have powered material clamping and controlled blade feed rate that is initiated with a foot switch actuation, for fast cutting different size of metal pipes. A semi-automatic coldsaw usually has a foot switch start that initiates the cycle. The blade starts, the powered vice clamps the workpiece and the cutting head feeds the blade through the material at a controlled rate. Powered bow raise lifts the head after the piece has been cut.

Product Features

High production rates, ideal for short batch runs,
Foot switch actuation
Hydro-pneumatic operation of saw head smoothes descent for optimum cut
Cutting speed regulator
Adjustable head stroke according to the dimensions of the material which has to be cut
2 speed main motor
45° right to 45° left cutting
Centralising heavy duty split vice
Coolant tank and electric pump for blade lubrication and cooling

Product Specification

Cutting Capacity

Maximum Saw Diameter	275 mm
Saw Angle	90° +/- 45°
Round Material Diameter (max.)	85 mm 70 mm
Square Material (max.)	70 x 70 mm 60 x 60 mm
Rectangular Material (Max.)	95 x 60 mm 70 x 55 mm

Technicial Specifications

Main Voltage	400 V
Control Voltage	24 V
Installed Power	4,7 kW
Current	1, 85 A
Saw Engine	1,3 - 1,8 kW
Boron Oil Pump	0,06 kW
Air pressure	6 kg/cm2 (240 l/min)
Saw Speed	45 / 80Dev. / Dak.
Angle Rotation	90° / +/- 45°

Saw Features

Saw Diameter	275 mm
Saw Bore Diameter	32 mm
Pin Holes	2 x Çap 11
TiN Coating	Medium Hard Steel
TiCn Coating	High Stiffness Steel
TiAIN Coating	Stainless steel

Dimensions

Most	1000 mm
Size	600 mm
Height	1400 mm
Net weight	230 Kg
Gross weight	250 Kg

Product Attachements

Attachment	Size
V 275X.pdf	8.17 MB
