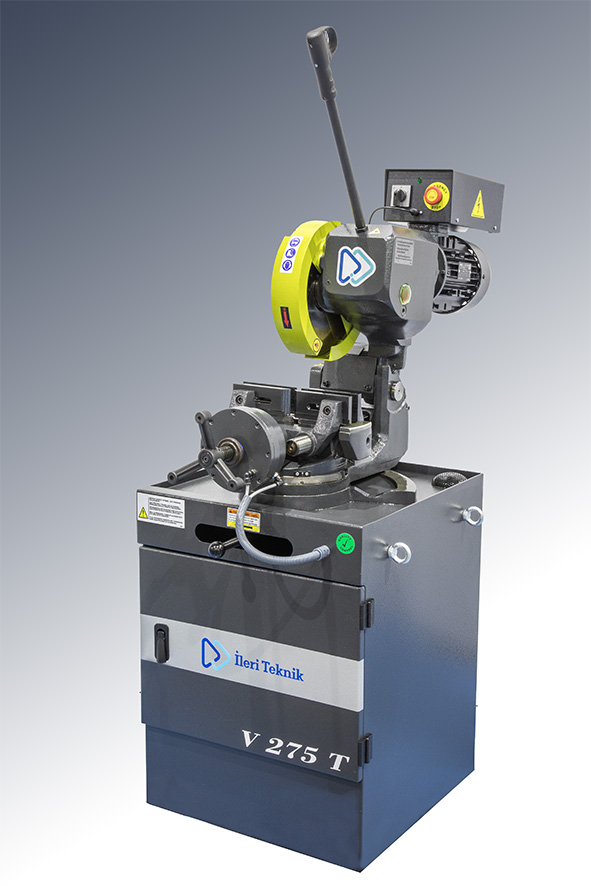

V 275T Manual With Power Vice Circular Saw Machine
V 275T Manual With Power Vice Circular Saw Machine
Product Overview
Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom
Product Features
-
Air-operated clamp for material vice
-
Low voltage start/stop trigger switch within the pull down hand grip
-
Miter capabilities 45 degrees left and 45 degrees right
-
Double split vice to grip material on both sides of the material
-
Self centering of vice optimizes cutting position
-
Large base for ultra-stability.
Product Specification
Cutting Capacity
| Maximum Saw Diameter | 275 mm |
| Saw Angle | 90° +/- 45° |
| Round Material Diameter (max.) | 85 mm 70 mm |
| Square Material (max.) | 70 x 70 mm 60 x 60 mm |
| Rectangular Material (Max.) | 95 x 60 mm 70 x 55 mm |
Technicial Specifications
| Main Voltage | 400 V |
| Control Voltage | 24 V |
| Installed Power | 3,7 kW |
| Current | 1, 35 A |
| Saw Engine | 1 - 1,3 kW |
| Boron Oil Pump | 0,06 kW |
| Saw Speed | 45 / 90Dev. / Dak. |
| Angle Rotation | 90° |
Saw Features
| Saw Diameter | 275 mm |
| Saw Bore Diameter | 32 mm |
| Pin Holes | 2 x Çap 11 |
| TiN Coating | Medium Hard Steel |
| TiCn Coating | High Stiffness Steel |
| TiAIN Coating | Stainless steel |
Dimensions
| Most | 600 mm |
| Size | 1000 mm |
| Height | 1400 mm |
| Net weight | 210 Kg |
| Gross weight | 230 Kg |
Product Attachements
| Attachment | Size |
|---|---|
| V 275T.pdf | 6.91 MB |
