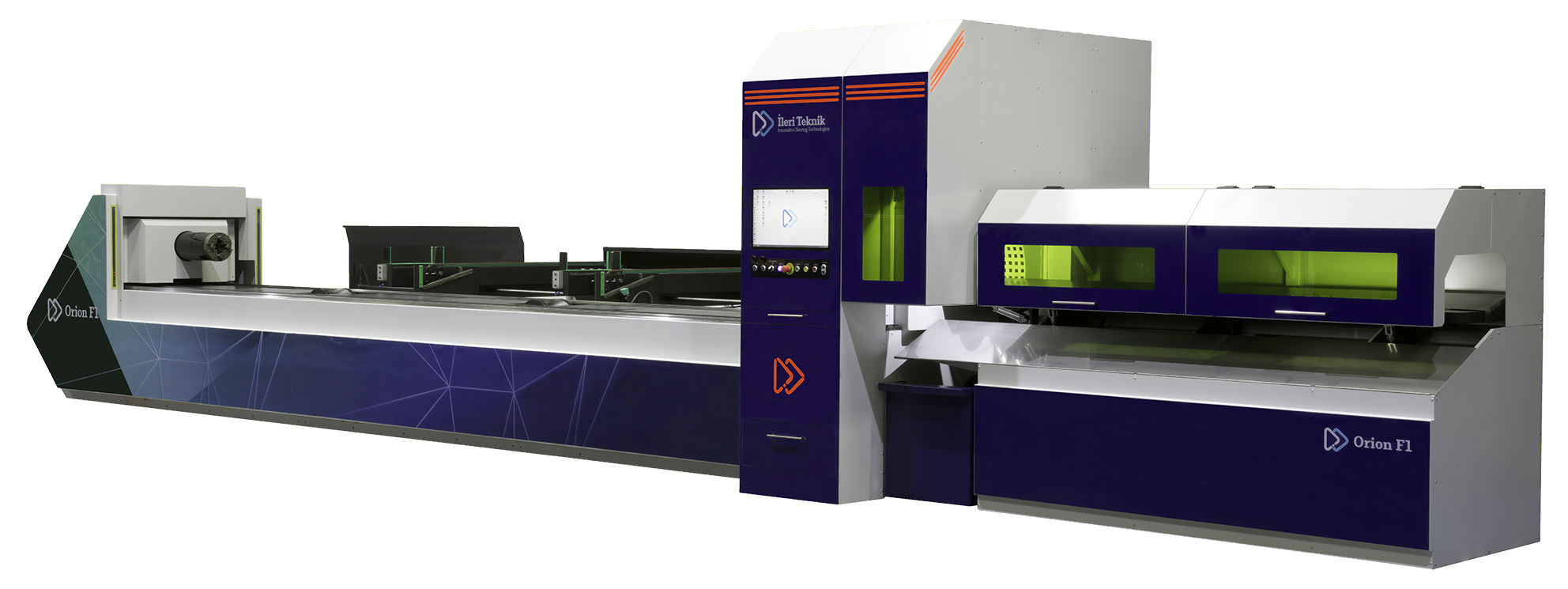

Orion F1 Pipe Laser Cutting Machines
Orion F1 Pipe Laser Cutting Machines
Product Overview
High-end professional series tube and profile laser cutting machine
Product Features
-
High-end professional series tube and profile laser cutting machine
-
Premium components with heavy-duty high rigidity structure
-
Strong mechanical design for maximum stability
-
High precision and repeatable cutting performance
-
Reliable solution for continuous operation in intensive production environments

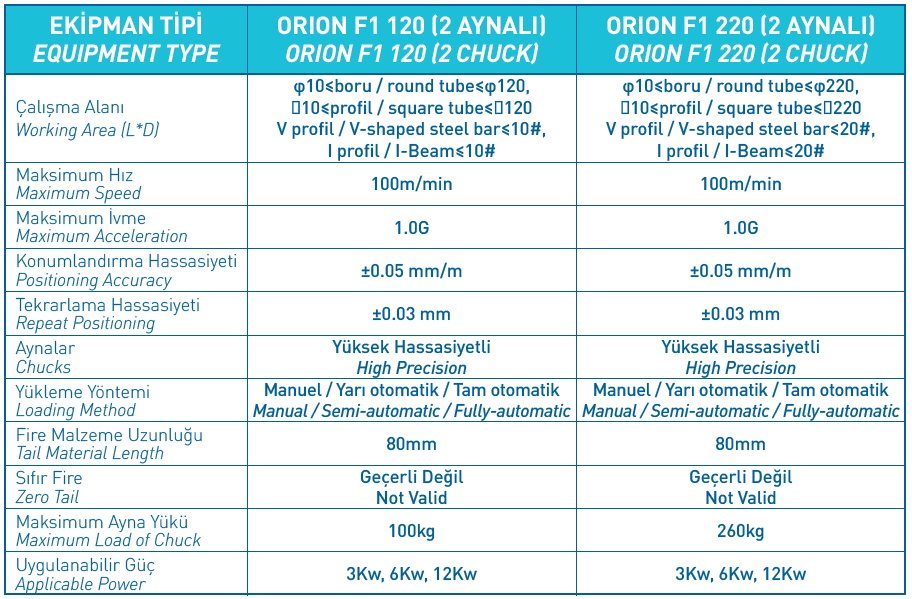

Product Specification
| Specification | ORION F1 120 (2 Chuck) | ORION F1 220 (2 Chuck) |
|---|---|---|
| Work Area | φ10–φ120 mm, □10–□120 mm | φ10–φ220 mm, □10–□220 mm |
| Max. Speed | 100 m/min | 100 m/min |
| Max. Acceleration | 1.0G | 1.0G |
| Positioning Accuracy | ±0.05 mm/m | ±0.05 mm/m |
| Repeat Positioning Accuracy | ±0.03 mm | ±0.03 mm |
| Chucks | High Precision | High Precision |
| Loading Method Method | Manuel/Semi/Fully-auto | Manuel/Semi/Fully-auto |
| Tail Length | 80 mm | 80 mm |
| Zero Tail | Not Valid | Not Valid |
| Max. Chuck Load | 100 kg | 260 kg |
| Applicable Power | 3kW, 6kW, 12kW | 3kW, 6kW, 12kW |
Product Attachements
| Attachment | Size |
|---|---|
| FR-DE_R01 | 1.78 MB |
| ES-PT REV 01.pdf | 1.83 MB |
| RU REV01.pdf | 1.51 MB |
| EN-TR REV01_3.pdf | 1.81 MB |
