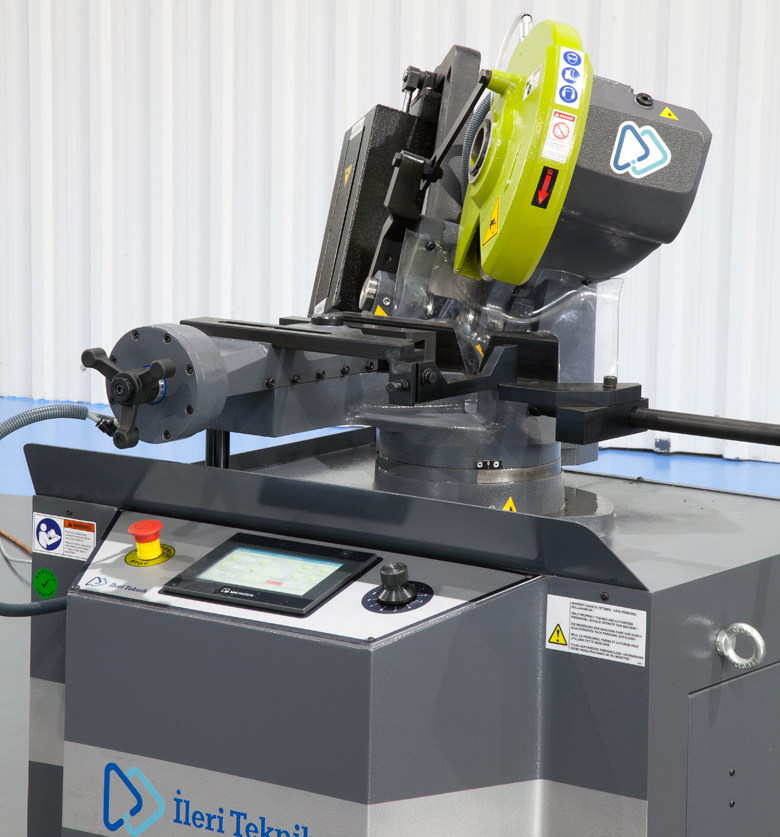

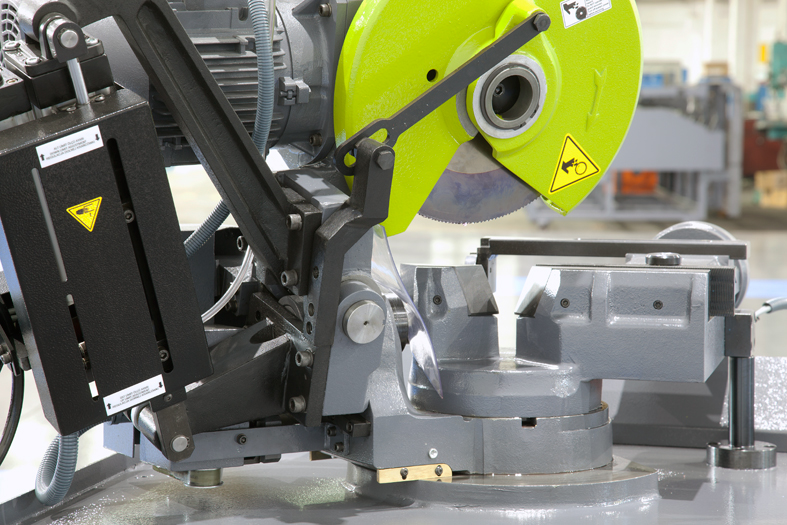

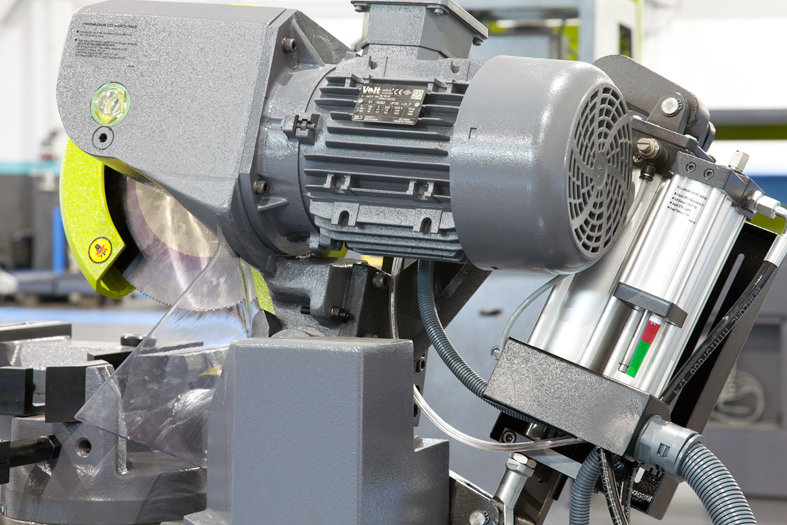

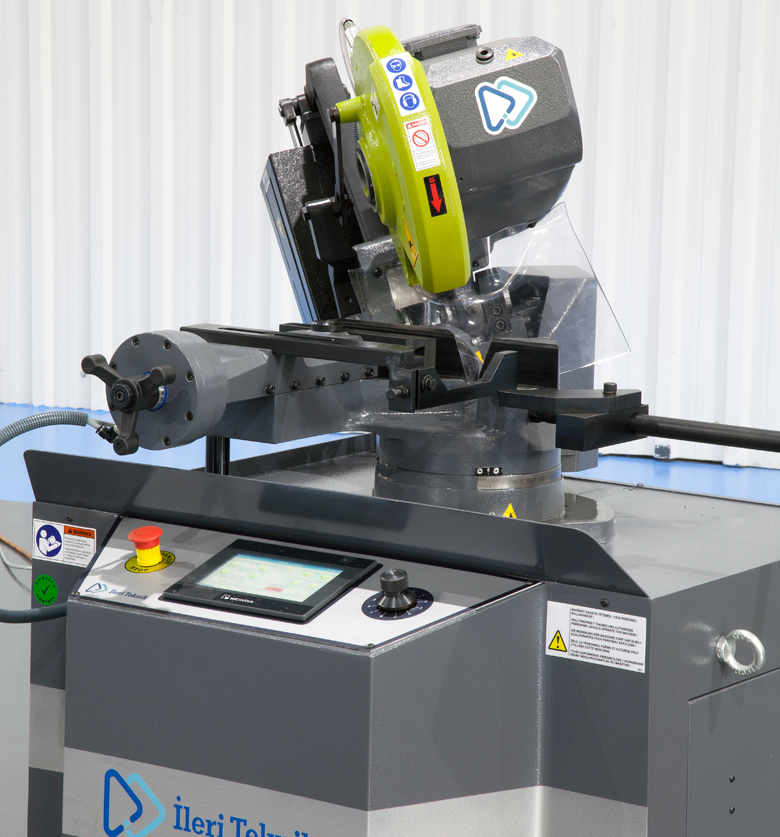

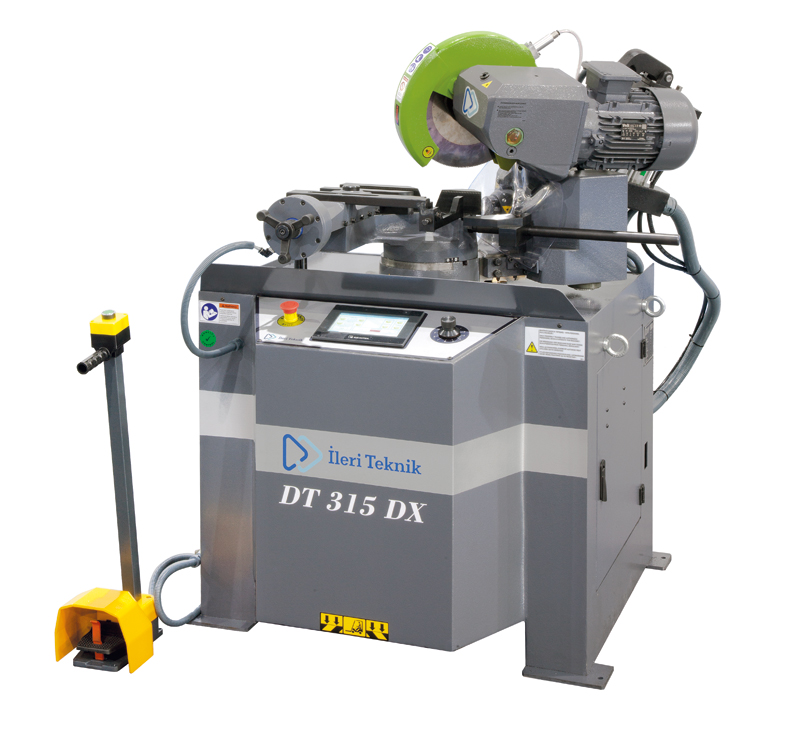

DT 315DX Semi Automatic Circular Saw Machine
DT 315DX Semi Automatic Circular Saw Machine
Product Overview
Semi-automatic compound mitre cutting Machine
Product Features
-
Semi-automatic mitre cutting circular saw designed for fast cutting.
-
±45° Horizontal , ±15° vertical automatic mitre
-
High production rates, ideal for short batch runs,
-
PLC controlled color type touch screen display
-
Hydro-pneumatic operation of saw head smoothes descent for optimum cut
-
Cutting speed regulator
-
Adjustable head stroke according to the dimensions of the material which has to be cut
-
2 speed main motor
Product Specification
Cutting Capacity
| Maximum Saw Diameter | 315 mm |
| Saw Angle | 90° +/- 45° |
| Round Material Diameter (max.) | 95 mm 85 mm |
| Square Material (max.) | 80 x 80 mm 70 x 70 mm |
| Rectangular Material (Max.) | 110 x 60 mm 80 x 50 mm |
Technicial Specifications
| Main Voltage | 400 V |
| Control Voltage | 24 V |
| Installed Power | 2,95 kW |
| Current | 9,8 A |
| Saw Engine | 1,8 - 2,2 kW |
| Boron Oil Pump | 0,06 kW |
| Air pressure | 6 kg/cm2 (240 l/min) |
| Saw Speed | 40 / 80 Dev. / Dak. |
| Angle Rotation | 90° / +/- 45° |
Saw Features
| Saw Diameter | 315 mm |
| Saw Bore Diameter | 32 mm |
| Pin Holes | 2 x Çap 11 |
| TiN Coating | Medium Hard Steel |
| TiCn Coating | High Stiffness Steel |
| TiAIN Coating | Stainless steel |
Dimensions
| Most | 1200 mm |
| Size | 970 mm |
| Height | 1400 mm |
| Net weight | 480 Kg |
| Gross weight | 500 Kg |
Product Attachements
| Attachment | Size |
|---|---|
| DT 315DXS_0.pdf | 23.81 MB |
