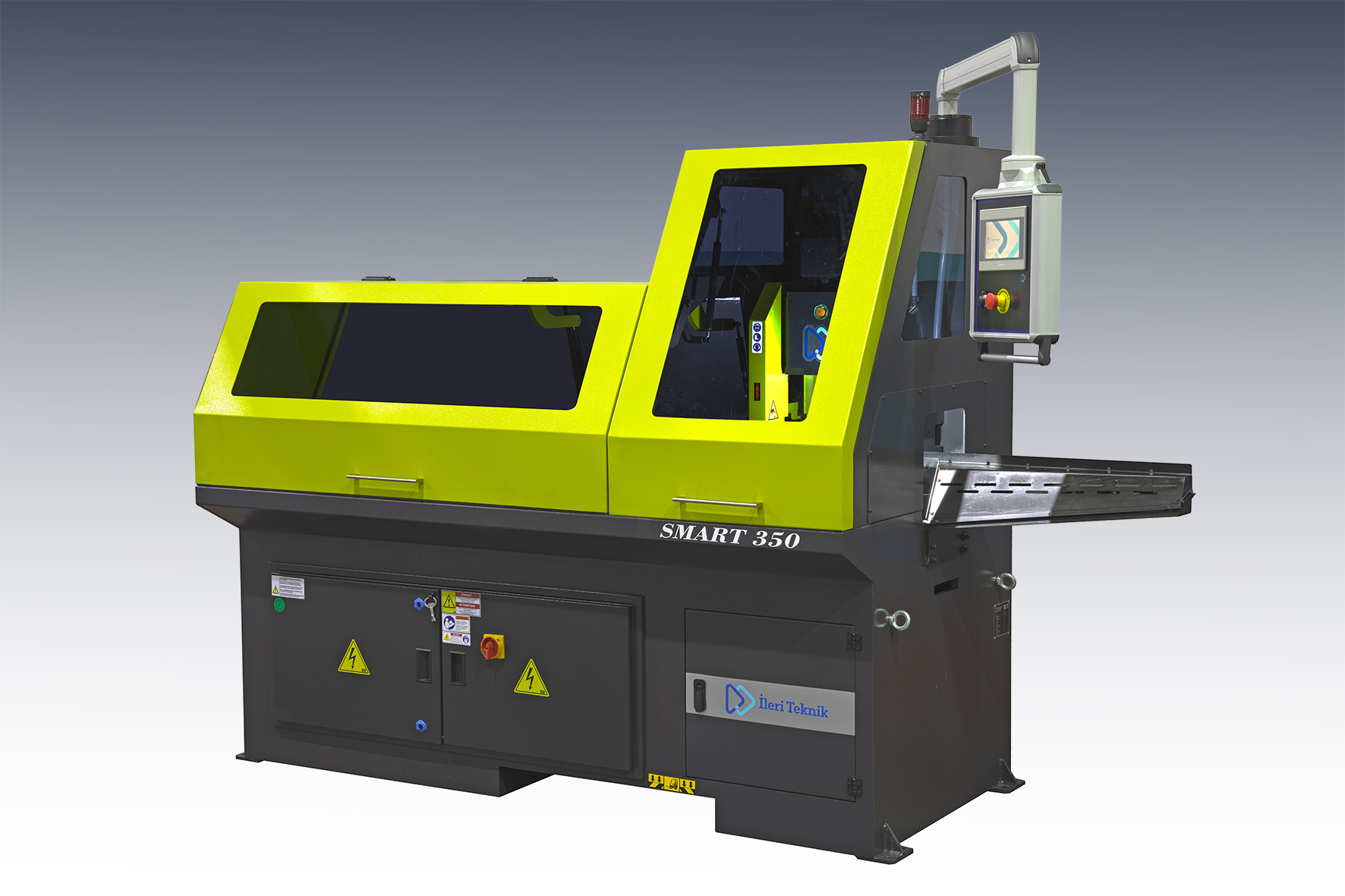

Smart 350 Fully Automatic Circular Saw Machine
Smart 350 Fully Automatic Circular Saw Machine
Product Overview
Fully automatic machine for straight tube cutting
Product Features
-
Fully automatic straight cutting saw machine
-
Servo motor controlled material feeding system with ball screw
-
Servo motor controlled vertical cutting system with ball screw,
-
PLC controlled colour type touch screen display
-
Heavy duty, helical gear and worm gear sets in gearbox
-
200 programs to save the all parameters for cutting again the same material
-
20 rpm to 100 rpm blade speed by invertor,
-
1000 mm feeding length
-
10 different cutting length adjustment in one material
-
± 0.2 mm cutting length precision
Product Specification
Cutting Capacity
| Maximum Saw Diameter | 350 mm |
| Saw Angle | 90° +/- 45° |
| Round Material Diameter (max.) | 110 mm |
| Square Material (max.) | 100 x 100 mm |
| Rectangular Material (Max.) | 120 x 90 mm |
| Min Length of Remaining Fire | 120 mm |
Technicial Specifications
| Main Voltage | 400 V |
| Control Voltage | 24 V |
| Installed Power | 5,6 kW |
| Current | 17 A |
| Saw Engine | 4 kW |
| Boron Oil Pump | 0,09 kW |
| Air pressure | 6 kg/cm2 (240 l/min) |
| Saw Speed | 20 - 100 By Inverter |
| Angle Rotation | 90° |
Saw Features
| Saw Diameter | 350 mm |
| Saw Bore Diameter | 32 mm |
| Pin Holes | 2 x Dia. 11 |
| TiN Coating | Medium Hard Steel |
| TiCn Coating | High Stiffness Steel |
| TiAIN Coating | Stainless steel |
Dimensions
| Width | 2200 mm |
| Length | 1100 mm |
| Height | 2000 mm |
| Net weight | 1370 Kg |
| Gross weight | 1390 Kg |
Product Attachements
| Attachment | Size |
|---|---|
| SMART 350_0.pdf | 28.61 MB |

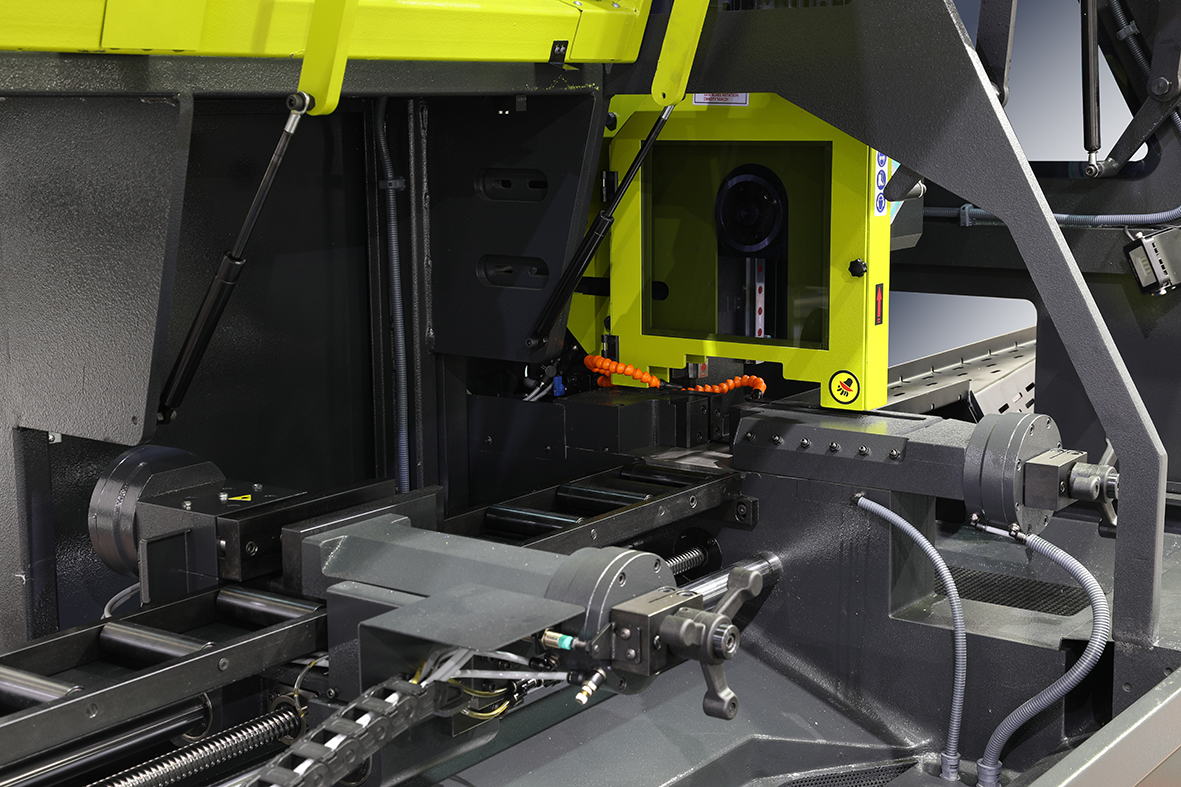

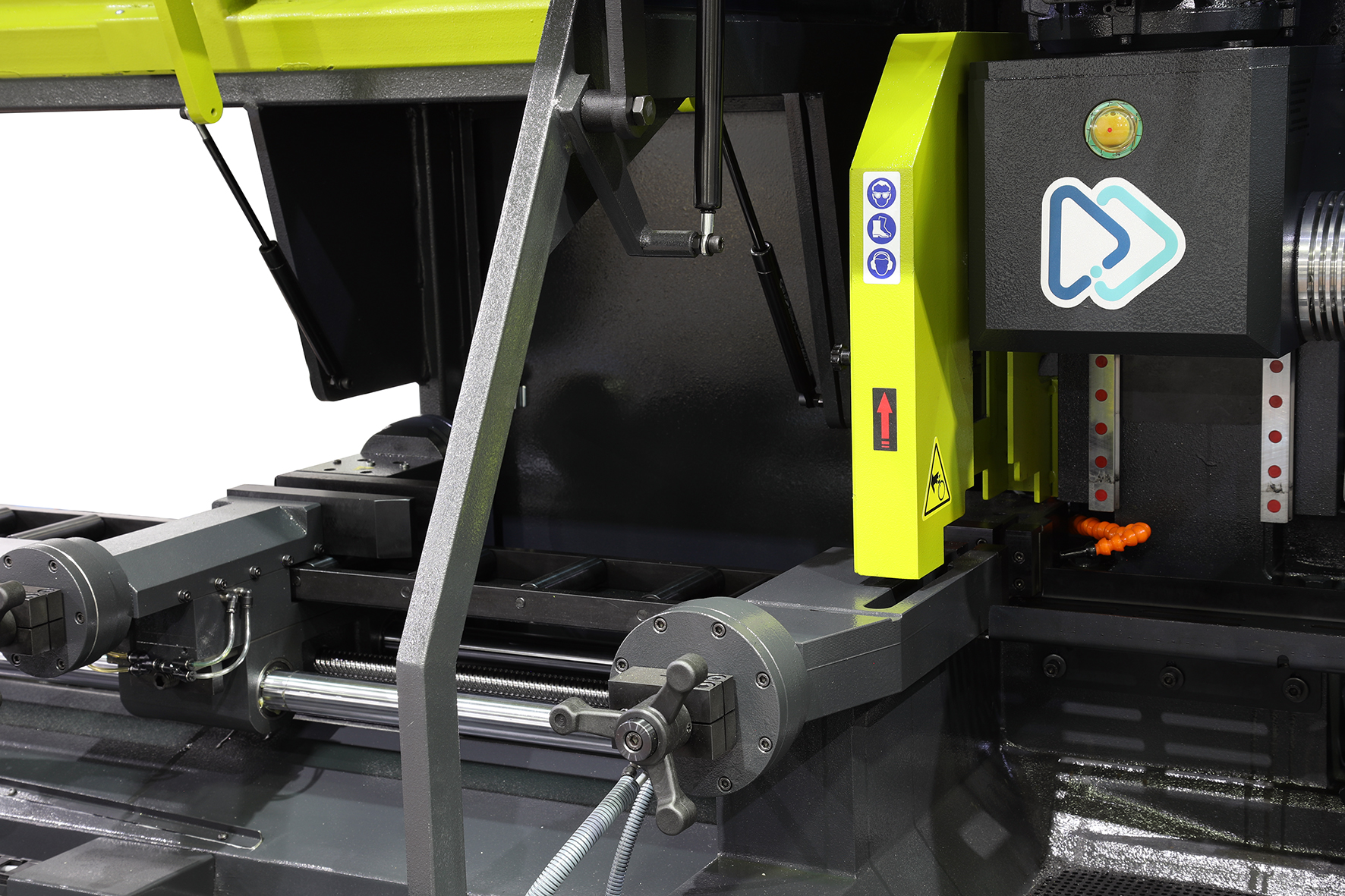

Product Gallery
