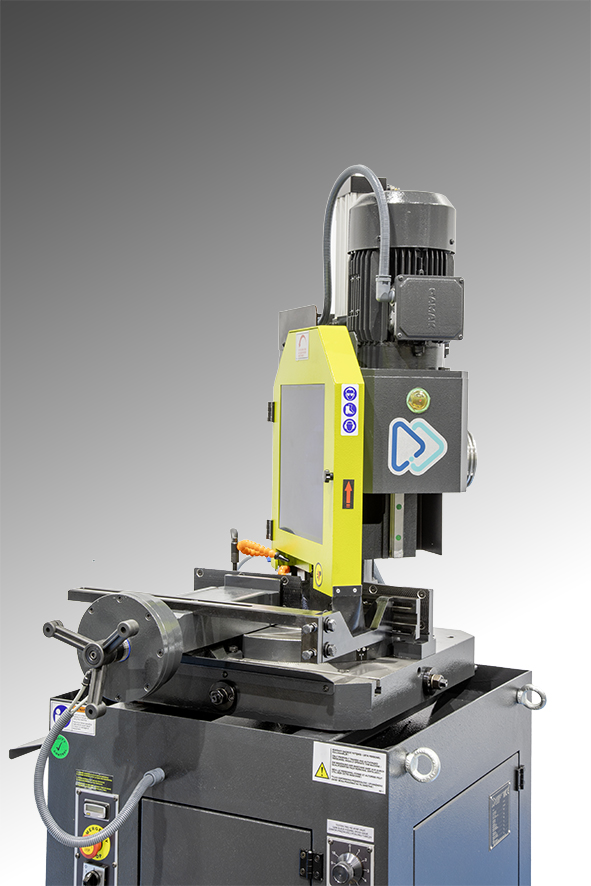

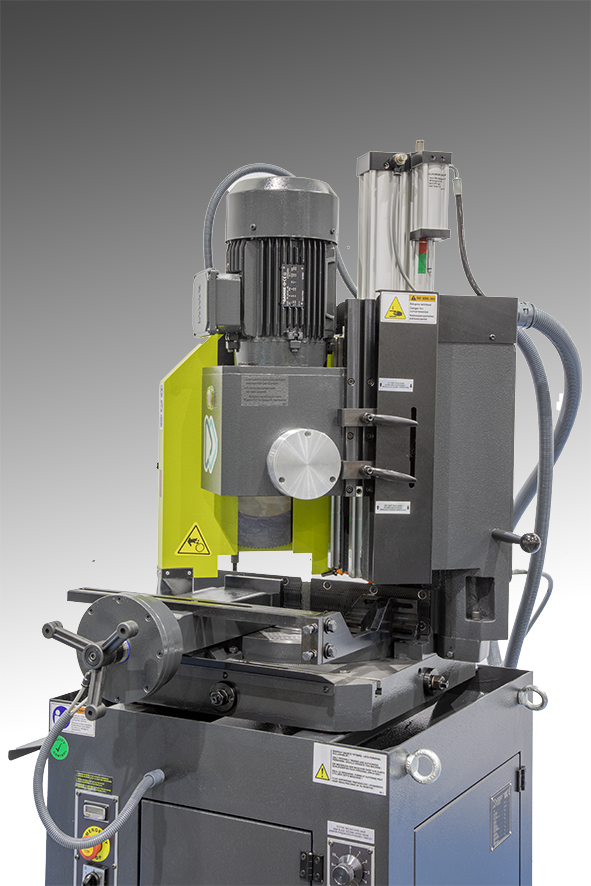

LCS 350 Semi Automatic Circular Saw Machine

LCS 350 Semi Automatic Circular Saw Machine

Product Overview

Semi-Automatic Vertical Action Circular Saw

Product Features

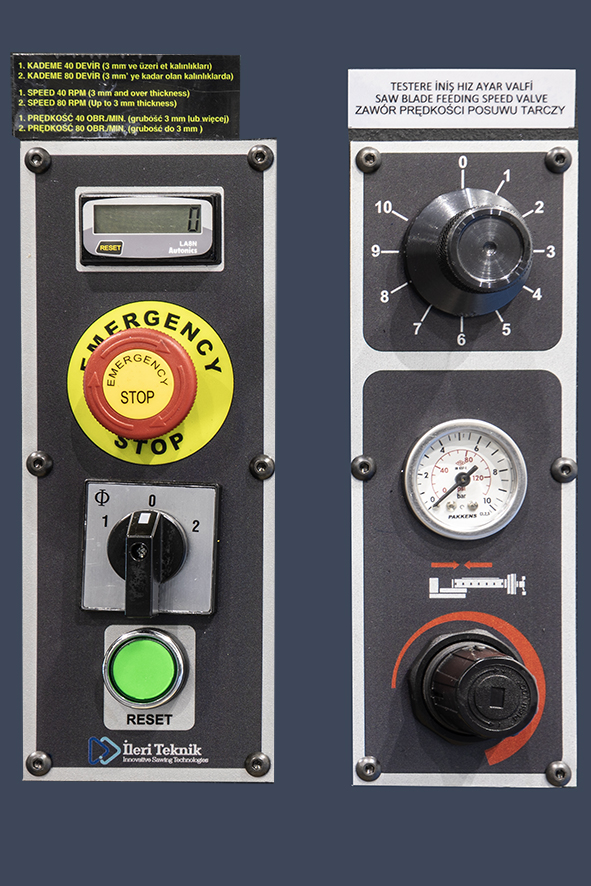

  • Foot switch actuation

  • Hydro-pneumatic operation of saw head smoothes descent for optimum cut

  • Heavy duty, helical gear and worm gear sets in gearbox

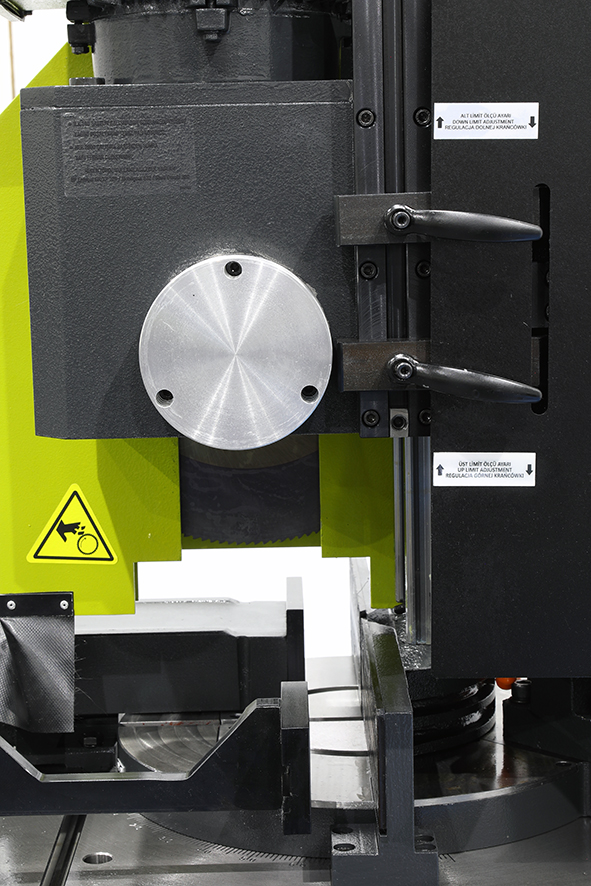

  • Head descends on hardened linear guides

  • Back lash reduction for prolonged blade life

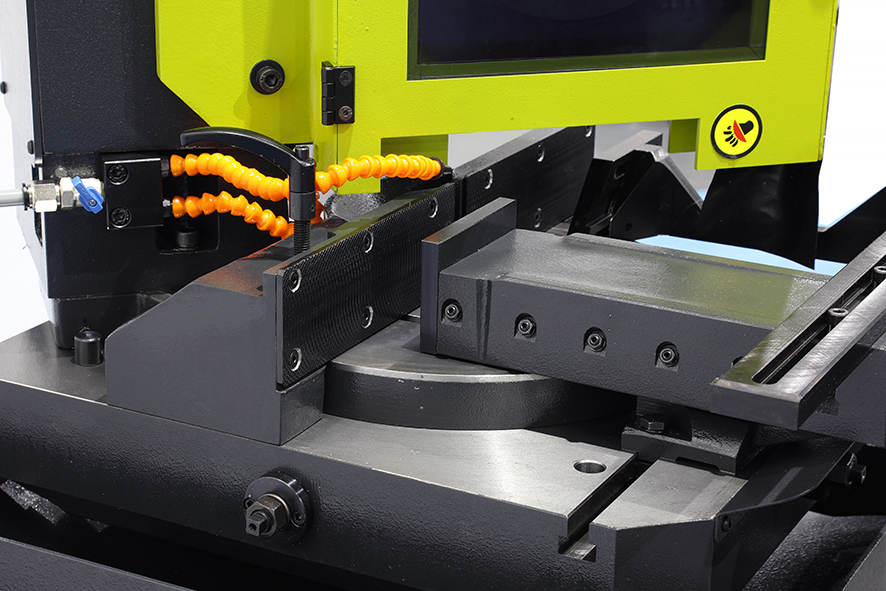

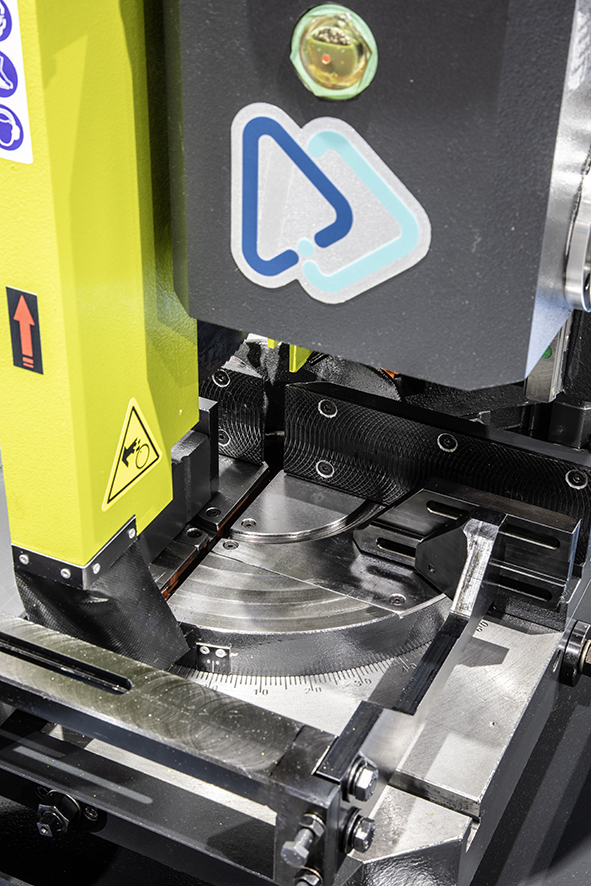

  • Easy, positive 0-45° right and 60° deg mitre left

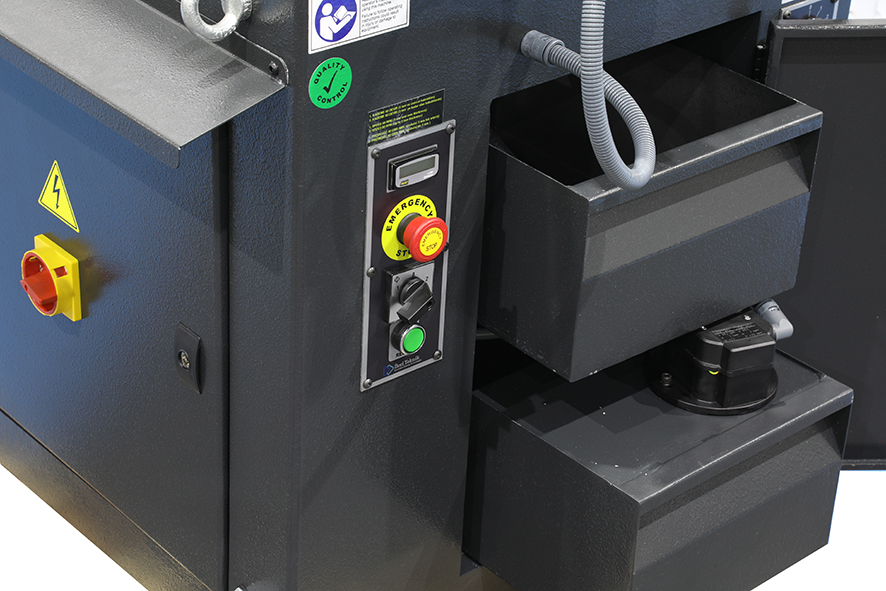

  • Coolant tank with box to collect chips and electric pump for blade lubrication and cooling

Product Specification

Cutting Capacity



Maximum Saw Diameter350 mm
Saw Angle90°                        +/- 45°                      + 60°
Round Material Diameter (max.)110 mm                 110 mm                      90 mm
Square Material (max.)100 x 100 mm      90 x 90 mm              80 x 80 mm
Rectangular Material (Max.)160 x 90 mm       120 x 80 mm             80 x 80 mm





Technicial Specifications



Main Voltage400 V
Control Voltage24 V
Installed Power3,1 kW
Current7,6 A
Saw Engine2,4 - 3 kW
Boron Oil Pump0,06 kW
Air pressure6 kg/cm2 (240 l/min)
Saw Speed36 / 72 Dev. / Dak.
Angle Rotation90°   /     +/- 45°      /     + 60°



Saw Features



Saw Diameter350 mm
Saw Bore Diameter32 mm
Pin Holes2 x Çap 11 / Pivot  Center Çap 63
TiN CoatingMedium Hard Steel
TiCn CoatingHigh Stiffness Steel
TiAIN CoatingStainless steel



Dimensions



Most1000 mm
Size800 mm
Height1800 mm
Net weight460 Kg
Gross weight480 Kg

Product Attachements

Attachment Size
LCS 350.pdf 22.52 MB
